NOSE CAP COLLET CHUCKS

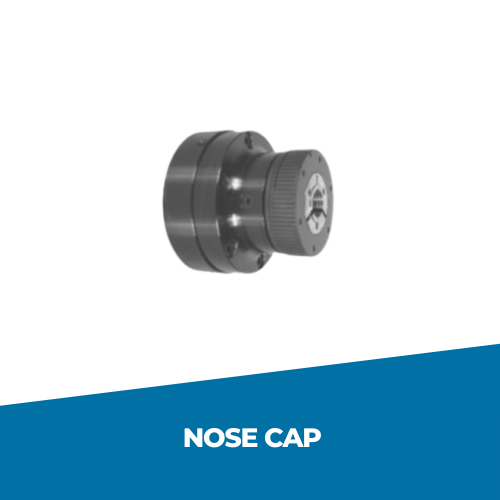

.png?width=500&height=500&name=Copy%20of%20Copy%20of%20Copy%20of%20AUTOMATION%20(6).png "Nose Cap")
Nose Cap Features
NOSE CAP Collet Chucks
-
Innovative patented True Length design
-
Fixed collet position ensures linear accuracy
-
Adjustability feature enables you to adjust for T.I.R.
-
Ideal for applications that require part transfers
-
All collet chucks include machined drawtube adapter and bonus package of spare parts
Nose Cap Collet Chuck Specifications
| ITEM | DESCRIPTION | SPINDEL | OAL | FLANGE | NOSE | CAPACITY | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| TL 21 - (Utilizes #21 Brown & Sharpe collets) | Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | ||
| 62150-B46 | A5-TL21 | A2-5 | 4.910 | 124.71 | 5.250 | 133.35 | 3.170 | 80.52 | 1.060 | 26.92 |
| 62160-B46 | A6-TL21 | A2-6 | 4.910 | 124.71 | 6.450 | 163.83 | 3.170 | 80.52 | 1.060 | 26.92 |
| 621110-B46 | 110 MM-TL21 | 110 MM | 4.910 | 124.71 | 6.450 | 163.83 | 3.170 | 80.52 | 1.060 | 26.92 |
| 621140-B46 | 140 MM-TL21 | 140 MM | 4.910 | 124.71 | 6.450 | 163.83 | 3.170 | 80.52 | 1.060 | 26.92 |
| TL 22 - (Utilizes #22 Brown & Sharpe collets) | Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | ||
| 62240-A46 | A4-TL22 | A2-4 | 6.330 | 160.78 | 5.450 | 138.43 | 3.685 | 93.60 | 1.250 | 31.75 |
| 62250-A46 | A5-TL22 | A2-5 | 6.330 | 160.78 | 5.450 | 138.43 | 3.685 | 93.60 | 1.250 | 31.75 |
| 62260-A46 | A6-TL22 | A2-6 | 6.330 | 160.78 | 6.450 | 163.83 | 3.685 | 93.60 | 1.250 | 31.75 |
| 622110-A46 | 110 MM-TL22 | 110 MM | 6.330 | 160.78 | 5.450 | 138.43 | 3.685 | 93.60 | 1.250 | 31.75 |
| 622140-A46 | 140 MM-TL22 | 140 MM | 6.330 | 160.78 | 6.450 | 163.83 | 3.685 | 93.60 | 1.250 | 31.75 |
| TL 42 - (Utilizes B42 Index Collets or Special S10 master collet) | Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | ||
| 64250-C46 | A5-TL42 | A2-5 | 5.955 | 151.26 | 6.450 | 163.83 | 4.188 | 106.38 | 1.620 | 41.15 |
| 64250-C46 | A6-TL42 | A2-6 | 5.955 | 151.26 | 6.450 | 163.83 | 4.188 | 106.38 | 1.620 | 41.15 |
| 64280-C46 | A8-TL42 | A2-8 | 6.200 | 157.48 | 8.450 | 214.63 | 4.188 | 106.38 | 1.620 | 41.15 |
| 642110-C46 | 110 MM-TL42 | 110 MM | 5.955 | 151.26 | 6.450 | 163.83 | 4.188 | 106.38 | 1.620 | 41.15 |
| 642140-C46 | 140 MM-TL42 | 140 MM | 5.955 | 151.26 | 6.450 | 163.83 | 4.188 | 106.38 | 1.620 | 41.15 |
| TL 60 - (Utilizes B60 Index Collets or Special S16/S20 master collets) | Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | ||
| 66050-D44 | A5-TL60 | A2-5 | 5.950 | 151.13 | 7.250 | 184.15 | 5.125 | 130.18 | 2.370 | 60.20 |
| 66060-D44 | A6-TL60 | A2-6 | 5.950 | 151.13 | 7.450 | 189.23 | 5.125 | 130.18 | 2.370 | 60.20 |
| 66080-D44 | A8-TL60 | A2-8 | 6.150 | 156.21 | 8.450 | 214.63 | 5.125 | 130.18 | 2.370 | 60.20 |
| 660110-D44 | 110 MM-TL60 | 110 MM | 5.950 | 151.13 | 7.250 | 184.15 | 5.125 | 130.18 | 2.370 | 60.20 |
| 660140-D44 | 140 MM-TL60 | 140 MM | 5.950 | 151.13 | 7.250 | 184.15 | 5.125 | 130.18 | 2.370 | 60.20 |
| TL 90 - (Utilizes DIN 90 collets or Special S26 master collets) | Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | ||
| 69060-E44 | A6-TL90 | A2-6 | 7.660 | 194.56 | 8.450 | 214.63 | 6.000 | 152.40 | 3.150 | 80.01 |
| 69080-E44 | A8-TL90 | A2-8 | 7.660 | 194.56 | 8.450 | 214.63 | 6.000 | 152.40 | 3.150 | 80.01 |
| 690140-E44 | 140 MM-TL90 | 140 MM | 7.460 | 189.48 | 8.450 | 214.63 | 6.000 | 152.40 | 3.150 | 80.01 |
