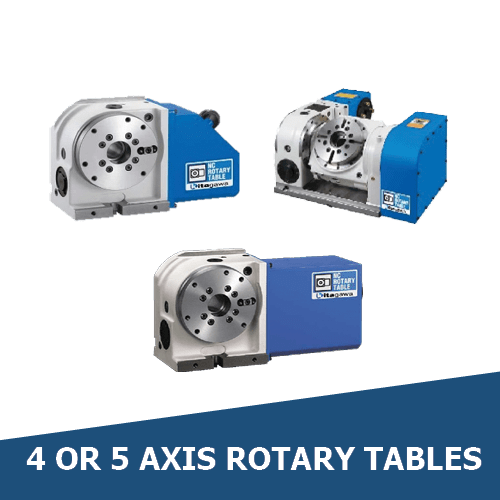

Kitagawa Rotary Tables

Optimize Your Machining Centers With Kitagawa 4th and 5th Axis Rotary Tables

Engineered to tailor complex machining needs

Our rotary tables can easily integrate with your vertical machining centers. It can turn your vertical machining centers from a 3rd axis into a 4th, or 4th into a 5th by simply mounting the rotary table right on any pallet.
With the rigid build, a solid meehanite cast body frame, and tremendous torque capacity (250 ft-lbs.)
Compact unit has a torque rating that is unmatchable. Its compact size allows it to be used in numerous applications and with its seamless interface, you will ﬁnd this rotary table to be a simple plug-and-play!

MR SERIES - INDEXER & 4TH AXIS MODELS


MR - MODEL		MR - 120	MR - 160	MR - 200	MR - 250	MR - 320
Right-handed Type		○	○	○	○	○
Left-handed type		○	○	○	○	○
Table Diameter (mm)		Ø128	Ø165	Ø202	Ø250	Ø 320
Center Hole Diameter (mm)		Ø50H7	Ø50H7	Ø65H7	Ø100H7	Ø130H7
Through Hole Diameter (mm)		Ø32	Ø40	Ø45	Ø70	Ø105
Centre Height (mm)		120	140	140	180	225
Clamping Method		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Clamping Torque (N.m)		150	310	350	600	1200
Clamping Torque (at 0.5 MPa)		150	310	350	600	1200
Motor Axis Reduced Inertia (kg*m2)		0.00004	0.00008	0.00017	0.00031	0.00031
Servomotor (for Fanuc spec.)		aiF 2/5000-B	aiF 2/5000-B	aiF 4/5000-B	aiF 4/5000-B	aiF 8/3000-B
Total Reduction Ratio		21916	26299	32874	32874	1/120
Max. Rotation Speed (min ^-1)		50	41.6	33.3	33.3	25
		50	41.6	33.3	(at motor 3000min ^-1)	(at motor 3000min -1)
		(at motor 3000min^-1)	(at motor 3000min ^-1)	(at motor 3000min ^-1)	33.3	16.6
		(at motor 3000min^-1)	(at motor 3000min ^-1)	(at motor 3000min ^-1)	(at motor 3000min ^-1)	(at motor 2000min -1)
Allowable Work Inertia (kg*m²)		0.22	0.51	1	1.95	4.49
Indexing Accuracy (sec)		20	20	20	20	20
Repeatability (sec)		4	4	4	4	4
Mass of Product (kg)		33	41	61	85	130
Allowable Load	Horizontal (kg)	120	160	200	250	350
Allowable Load	Vertical (kg)	60	80	100	125	180
Manual Tailstock (as an option)		MR120RN	MR160RN	MR200RN	MR250RN	MR320RN
Tail Spindle (as an option)		TSR121A	MSR142A/TSR142A	MSR142A/TSR142A	MSR181A/TSR181A	TSR181A45
Rotary Joint (as an option)		RJ32-12Q04	RJ40H16Q	RJ40H20Q02	RJ70H25Q02	RJ70H32Q01
Rotary Joint (as an option)		Hydraulic / Pneumatic 3 ports	Hydraulic / Pneumatic 4 ports	Hydraulic / Pneumatic 4 ports	Hydraulic / Pneumatic 6 ports	Hydraulic / Pneumatic 6 ports

TR SERIES - INDEXER & 4TH AXIS MODELS


TR - MODEL		TLX250	TRX320(TLX)	TR400(TL)	TR500(TL)	TR630
Right-handed Type		x	○	○	○	○
Left-handed type		○	○	○	○	x
Table Diameter (mm)		Ø250	Ø320	Ø400	Ø500	Ø630
Center Hole Diameter (mm)		Ø105H7	Ø135H7	Ø180H7	Ø200H7	Ø280H7
Through Hole Diameter (mm)		Ø78	Ø110	Ø150	Ø170	Ø250
Centre Height (mm)		180	225	225	310	400
Clamping Method		Air-Hydraulic/Hydraulic	Air-Hydraulic/Hydraulic	Air-Hydraulic/Hydraulic	Air-Hydraulic/Hydraulic	Air-Hydraulic/Hydraulic
Clamping Torque (N.m) (at pneumatic TRX-0.5MPa, TR-0.4MPa, hydraulic 3.5MPa)		1100	2600	2500	3200	4000
Motor Axis Reduced Inertia (kg^.m2²)		0.00073	0.00085	0.0028	0.0028	0.0064
Servomotor (for Fanuc spec.)		aiF 4/5000-B	aiF 8/3000-B	aiF 12/4000-B
Total Reduction Ratio	4th axis spec.	1/90	1/120	1/180	1/180	1/180
	(Fanuc spec.)	1/90	1/120	1/180	1/180	1/180
	M signal spec.	1/90	1/180	1/180	1/180	1/180
Max. Rotation Speed	4th axis spec.	33.3	25	11.1	11.1	11.1
Max. Rotation Speed	(Fanuc spec.)	(at motor 3000min^-1)	(at motor 3000min^-1)	(at motor 2000min^-1)	(at motor 2000min ^-1)	(at motor 2000min ^-1)
(min^-1)	M signal spec.	33.3	16.6	11.1	11.1	8.3
(min^-1)	M signal spec.	(at motor 3000min^-1)	(at motor 3000min^-1)	(at motor 2000min^-1)	(at motor 2000min ^-1)	(at motor 1500min -1)
Allowable Work Inertia (kg^.m²)		1.95	4.48	10	18.73	49.62
Indexing Accuracy (sec)		20	20	20	20	20
Repeatability (sec)		4	4	4	4
Mass of Product (kg)		142	181	350	550	900
Allowable Load	Horizontal (kg)	250	350	500	600	1000
Allowable Load	Vertical (kg)	125	180	250	300	400
Manual Tailstock (as an option)		TS250RN	TS320RN	TS400RN	TS500RN	TS630RN
Tail Spindle		MSR181A/TSR181A	TSR181A45	Order Production	Order Production	Order Production
Option		TSR181H	TSR181H45	Order Production	Order Production	Order Production
Rotary Joint		RJ70H25D05	RJ70H32K02	Order Production	Order Production	Order Production
Option		Hydraulic / Pneumatic 6 ports	Hydraulic / Pneumatic 6 ports	Order Production	Order Production	Order Production

TT SERIES - 5TH AXIS (4+1) MODELS


TT- MODEL		TT-101	TT-140	TT-150	TT182/TW182	TT-200	TT251/TW251	TT321/TW321
Tilt Angle Range		-20^○~+120^○	-110^○~+110^○	-20^○~+110^○	-35^○~+110^○	-35^○~+110^○	-35^○~+110^○	-35^○~+110^○
Table Diameter (mm)		Ø110	Ø140	Ø150	Ø180	Ø200	Ø250	Ø320
Center Hole Diameter (mm)		Ø50H7	Ø60H7	Ø60H7	Ø65H7	Ø65H7	Ø100H7	Ø135H7
Through Hole Diameter (mm)		Ø32	Ø32	Ø40	Ø40	Ø40	Ø70	Ø110
Centre Height (mm)		140	200	150	180	180	225	225
Clamping Method		Pneumatic	Pneumatic	Pneumatic	Air-hydraulic / Hydraulic	Air-hydraulic / Hydraulic	Air-hydraulic / Hydraulic	Air-hydraulic / Hydraulic
Clamping Torque (N.m)	Rotating Axis	180	280	350	450	600	900	2600
(at 0.5 MPa)	Tilting Axis	300	500	550	800	1200	1200	2600
Motor Axis Reduced Inertia	Rotating Axis	0.000082	0.000269	0.000242	0.000242	0.000225	0.0007	0.00083
(kg*m²)	Tilting Axis	0.000081	0.000288	0.000132	0.000135	0.000125	0.00054	0.00046
Servo Motor	Rotating Axis	αiF 1/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 4/5000-B	αiF 8/3000-B
(for Fanuc spec.)	Tilting Axis	αiF 2/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 2/5000-B	αiF 4/5000-B	αiF 8/3000-B
Total Reduction Ration	Rotating Axis	1/72	1/72	1/72	1/90	1/90	1/90	1/120
	Rotating Axis	1/72	1/72	1/72	1/90	1/90	1/180	1/360
	Tilting Axis	1/120	1/120	1/180	1/180	1/180	1/90	1/180
	Tilting Axis	1/120	1/120	1/180	1/180	1/180	1/180	1/360
Max. Rotation Speed (min-¹)	Rotating Axis	41.6	41.6	41.6	33.3	33.3	33.3	25
	(at motor 3000 min-¹)	41.6	41.6	41.6	33.3	33.3	16.6	8.3
	Titling Axis	25	16.6	16.6	16.6	16.6	33.3	16.6
	(at motor 3000 min-¹⁾	25	16.6	16.6	16.6	16.6	16.6	8.3
Allowable Work Inertia (kg*m²)		0.05	0.12	0.14	0.25	0.3	0.78	1.92
Indexing Accuracy (sec)	Rotating Axis	30	30	30	20	20	20	20
Indexing Accuracy (sec)	Tilting Axis	60	60	60	60	60	45	45
Repeatability (sec)		4	4	4	4	4	4	4
Mass of Product (kg)		73	158	141	163 / 178	170	260 / 270	350 / 360
Allowable Load	at Horizontal (kg)	35	50	50	60	60	100	150
Allowable Load	at Tilted (kg)	20	30	30	40	40	60	100
Built-in Rotary Joint (as an option)		RJ32-10T05	RJ32TT140	RJ40FTT150	RJ40FTT182	RJ40FTT200	RJ70H25T02	RJ70H32T03
Built-in Rotary Joint (as an option)		Hydraulic / Pneumatic 3 ports	Hydraulic / Pneumatic 4 ports	Hydraulic / Pneumatic 4 ports + Pneumatic exclusive 1 port	Hydraulic / Pneumatic 4 ports +Pneumatic exclusive 1 port	Hydraulic / Pneumatic 4 ports +Pneumatic exclusive 1 port	Hydraulic / Pneumatic 6 ports	Hydraulic / Pneumatic 6 ports
Pneumatic Outer Cylinder (as an option)					NY1312T18B	NY1312T18B
Hydraulic Outer Cylinder (as an option)					NY0912T18A
